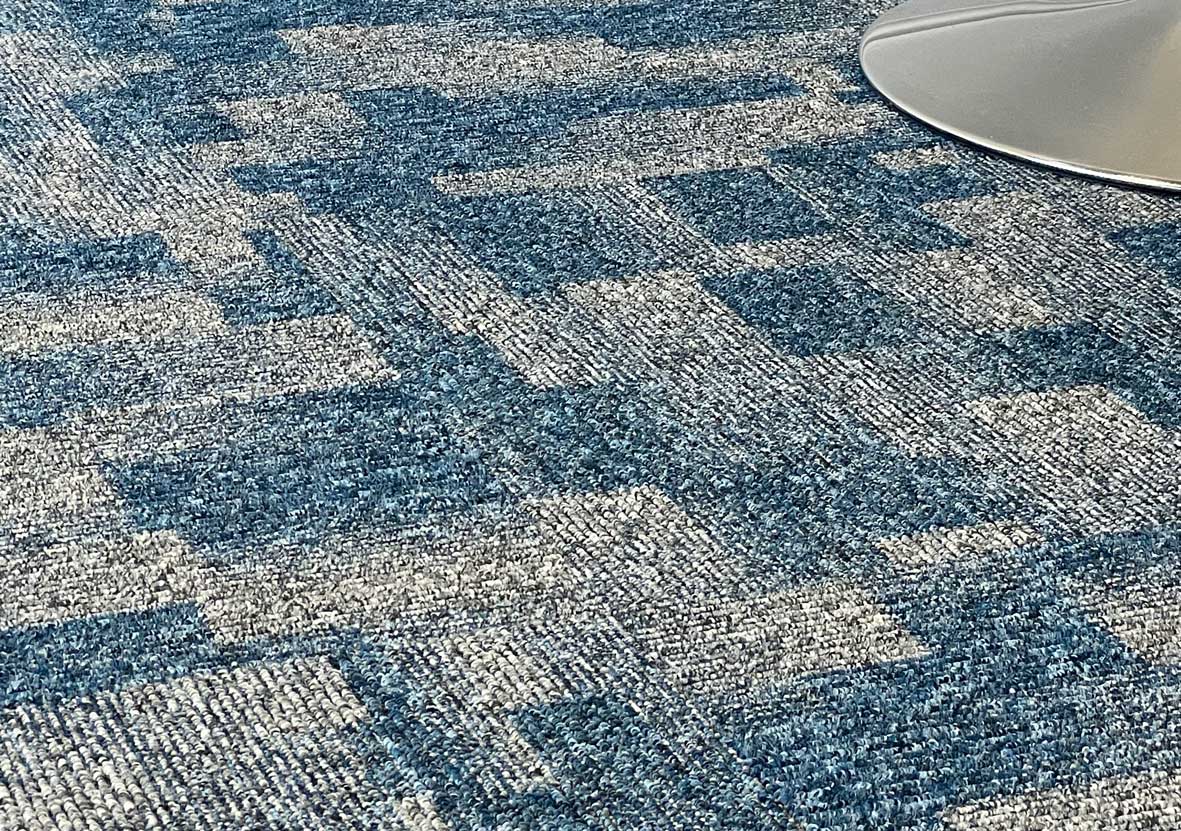

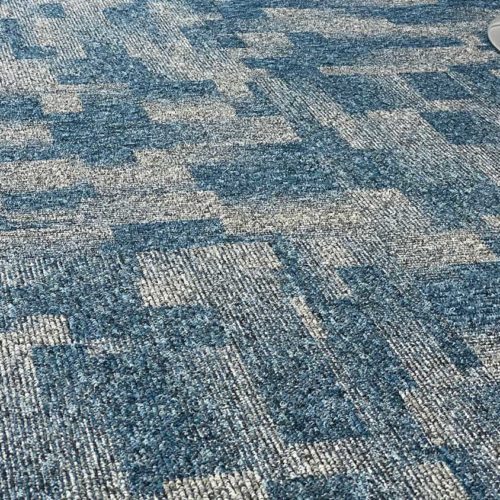

Urban Structure – artistic tiles for the modern office.

Manufactured on a state-of-the-art Myriad tufting machine, the Urban Structure collection is a truly artistic flooring concept that uses 100% polypropylene stain-free yarn in a technically superior finish.

Constructed with 1/10th gauge multi-level loop, Urban Structure is a product that meets the demands of a commercial environment yet works within demanding cost restraints.

More Info

Urban Structure

The selection of contemporary colours and accents melt together to create a sympathetic relation in which the colours are perfectly balanced.

Urban Structure is a richly structured carpet tile, the natural irregularities in the designs give the impression of a hand-woven textile, which provides a sense of serenity and calm. Available in a selection of 6 earthy and vibrant tones, Urban Structure provides a perfect backdrop for any commercial interior.

Recommended for heavy traffic areas since its technical features ensure its extreme durability.

Based on all its credentials, being a 600gsm, class 32 general contract use tile, and castor test suitability, along with an impressive Clf-s1 fire rating.

The Urban Structure collection is a perfect fit for any commercial environment, whether it’s a school reception, university, commercial location, or a general office space that demands a unique identity.

6 Colourways To Choose

6 Stylish Colourways

Download A Shade CardPlank Format & Acoustic Backing Options

Plank Format & Acoustic Backing

The acoustics on the Standard bitumen backing is much greater than the industry requirement being 24dB for additional acoustics the acoustic backing increases this to an impressive 30dB.

Bitumen backing is Available as Standard in 50cm x 50cm carpet tiles, (acoustic backing as a special order).

We can also offer a special tile size of 25cm x 100cm, also available in either a bitumen or acoustic backing (subject to minimum order quantities).

View The Specifications

Specifications

Product definition Tufted multi-loop pile
Gauge 1/10″ Myriad
Pile fibre 100% Solution dyed polypropylene
Pile weight ISO 8543 600 gr/m2 ± 5%
Pile height ISO 1766 3.2 mm ± 5%
Tile backing Bitumen with fibreglass interlay
Total thickness ISO 1765 5.6 mm ± 5%
Total weight ISO 8543 3125 gr/m2 ± 5%
Tile size 50 x 50 cm
Use classification 32 general contract
Castor chair test B, occasional use
Static loading Anti static
Abrasion Pass
Sound absorption ISO 140-8 24dB
Reaction to fire Cfl-s1
Dimensional stability Pass
Tiles per box 20 (5m2)
Wear warranty 5 years general contract

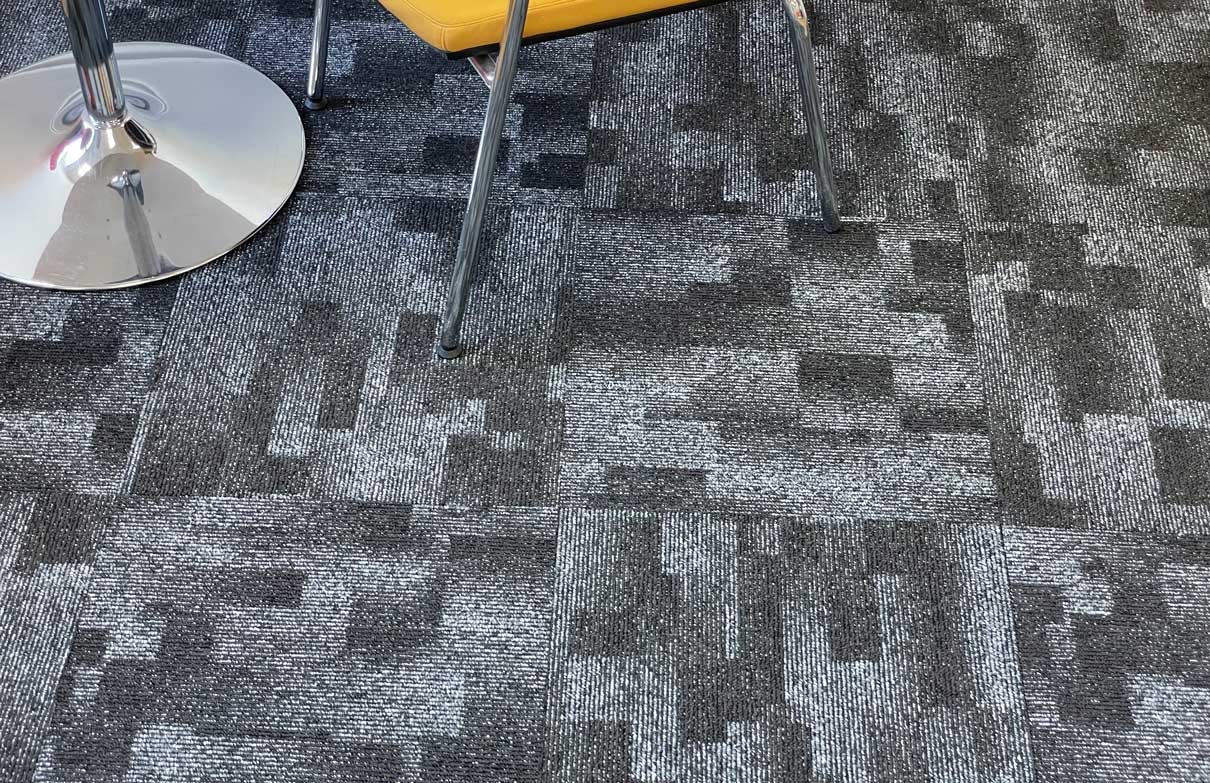

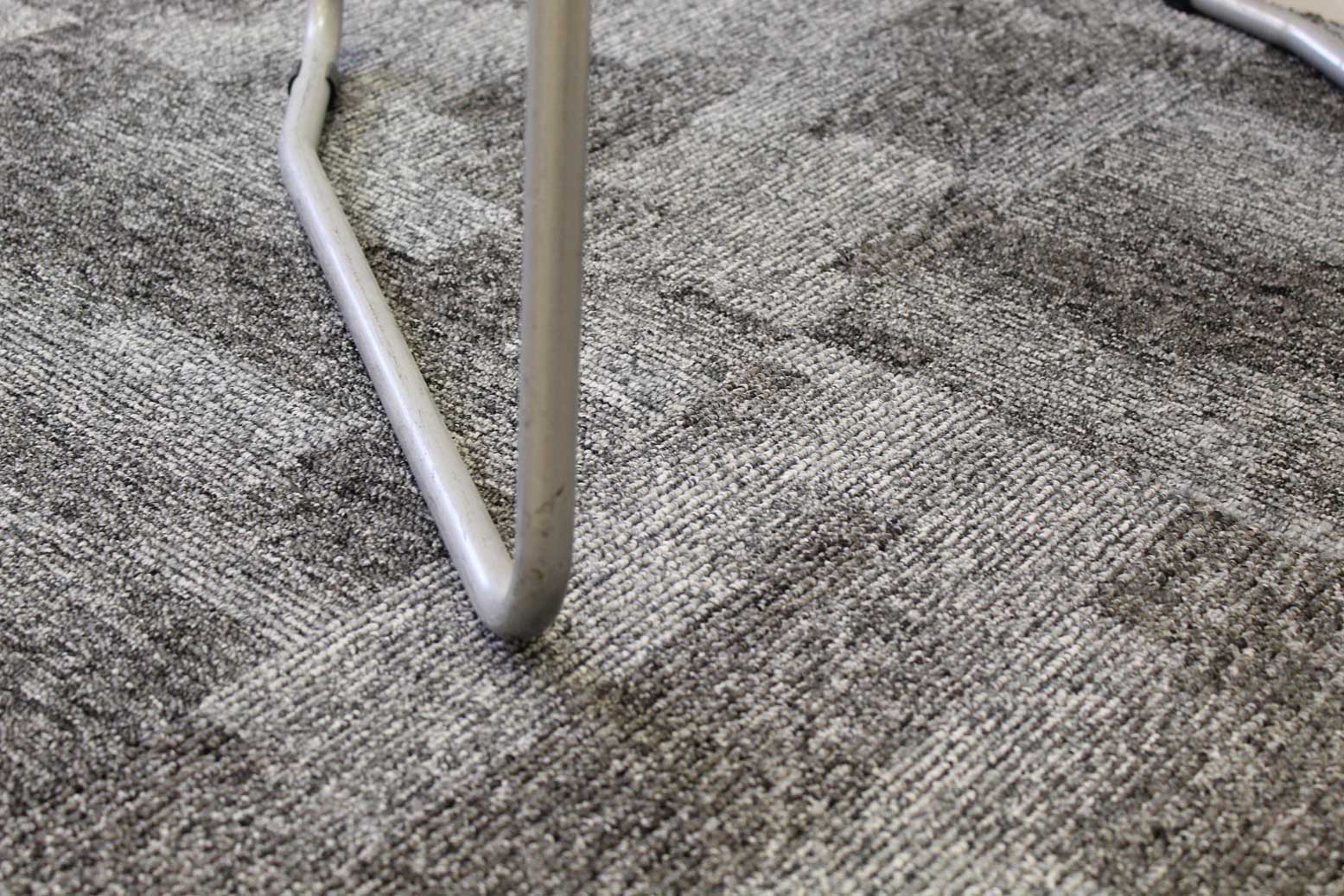

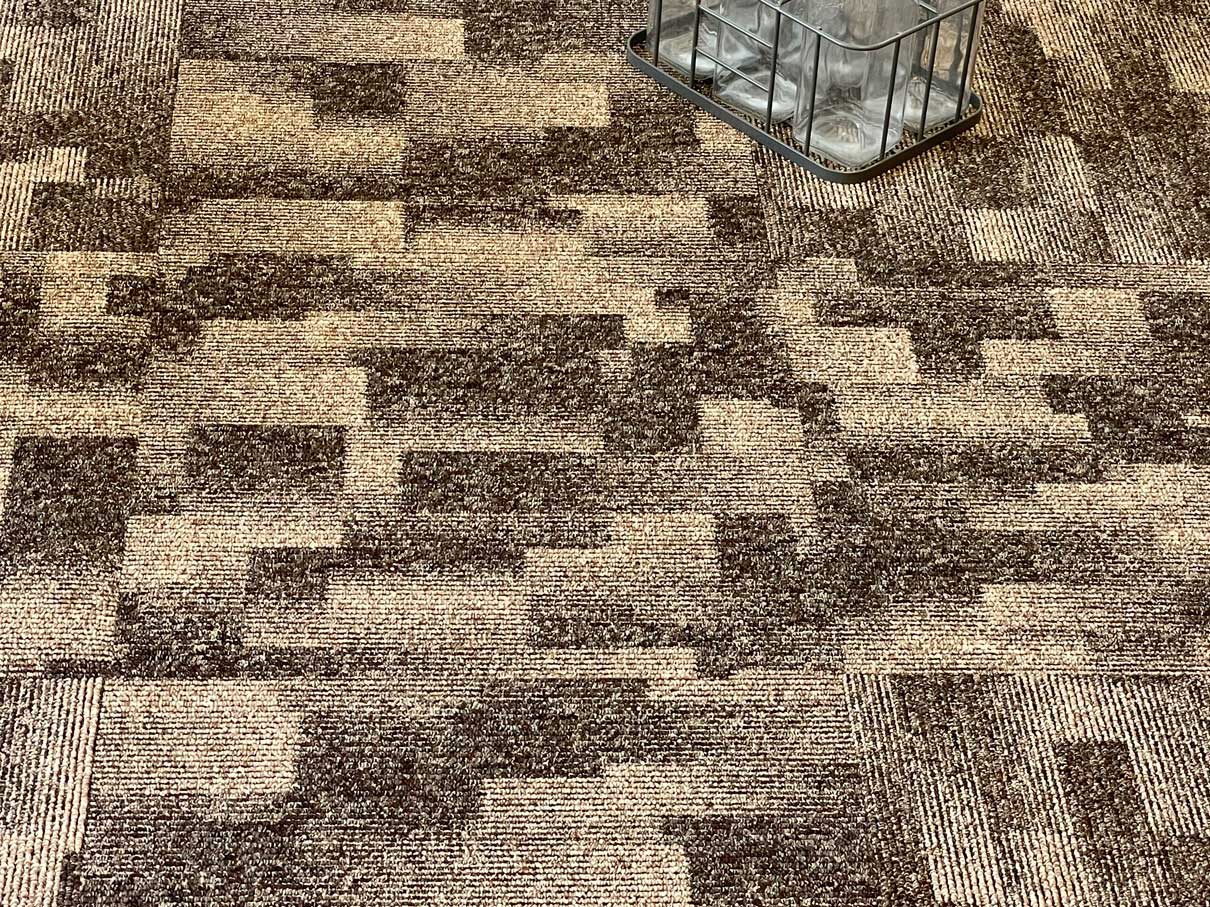

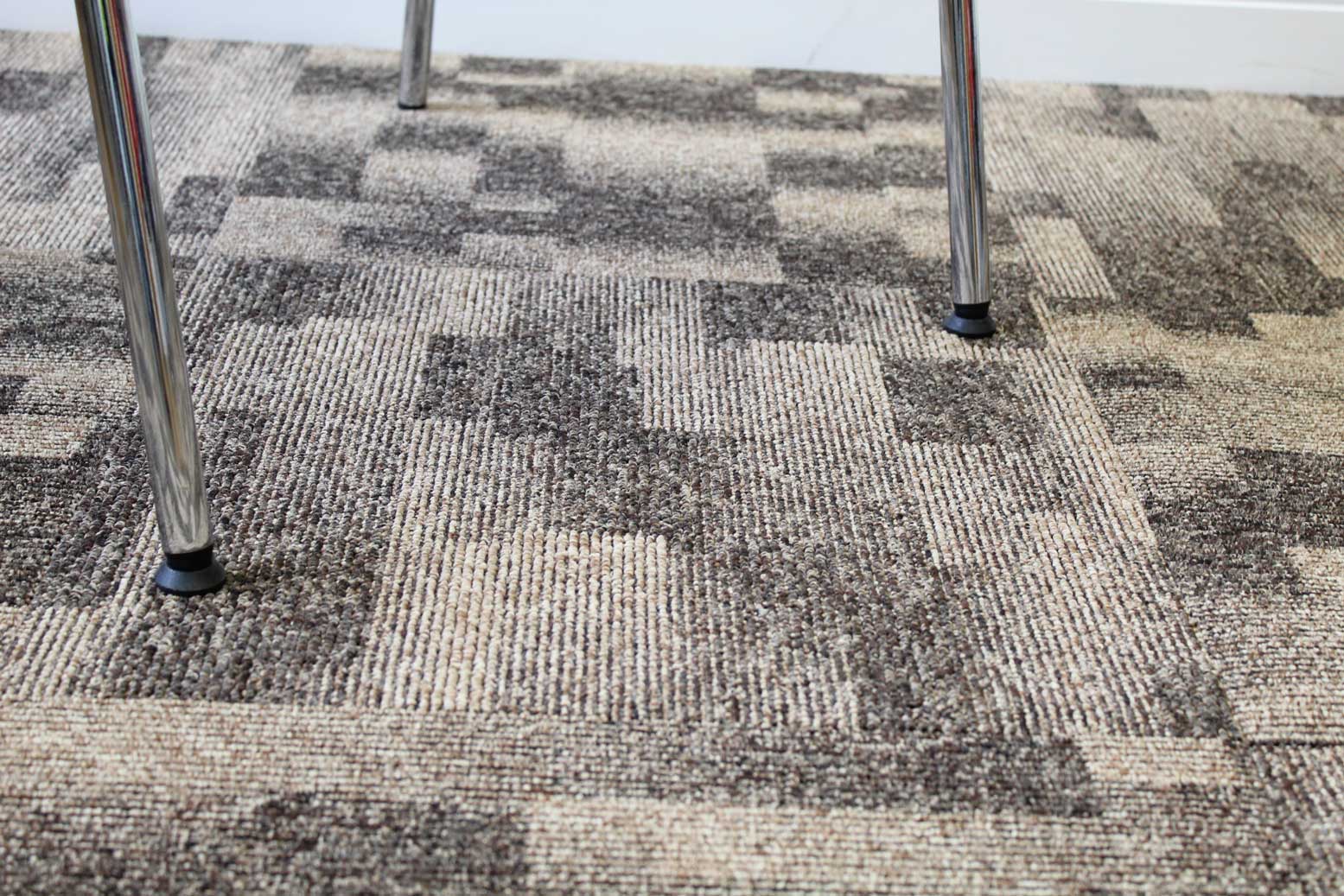

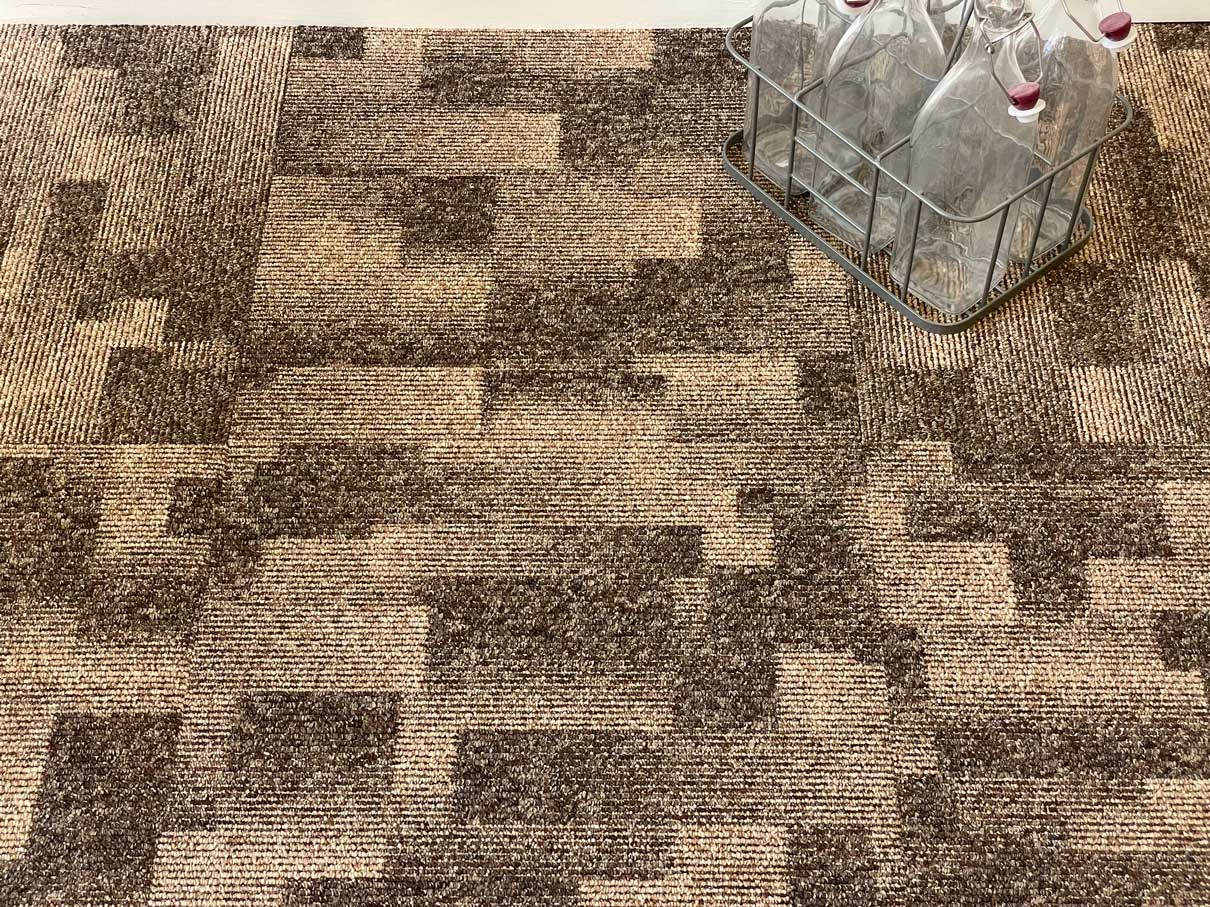

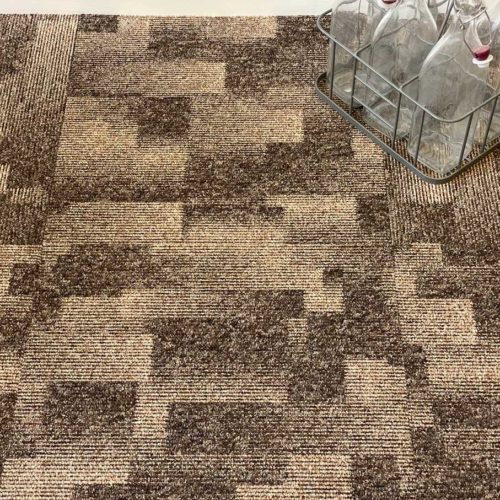

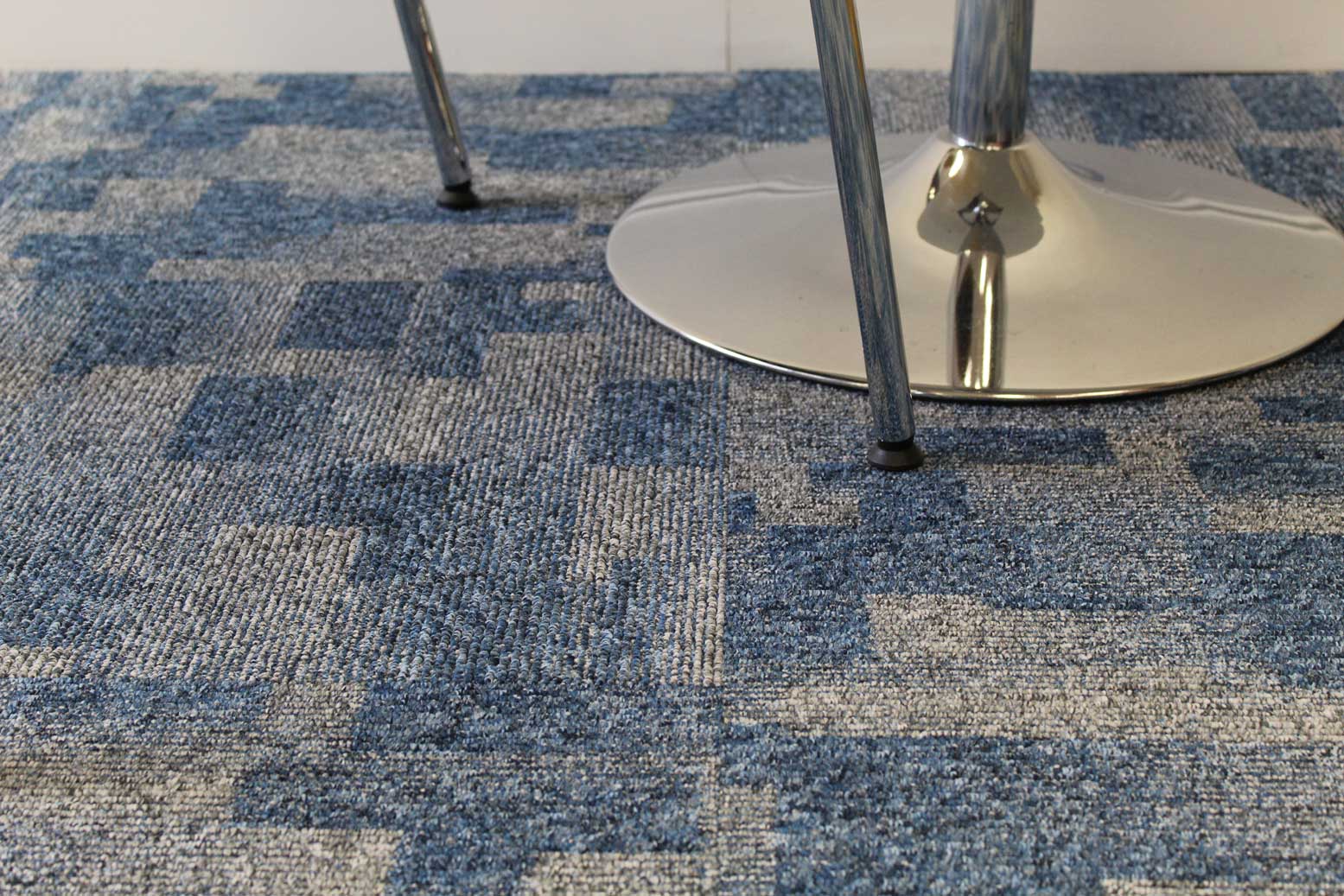

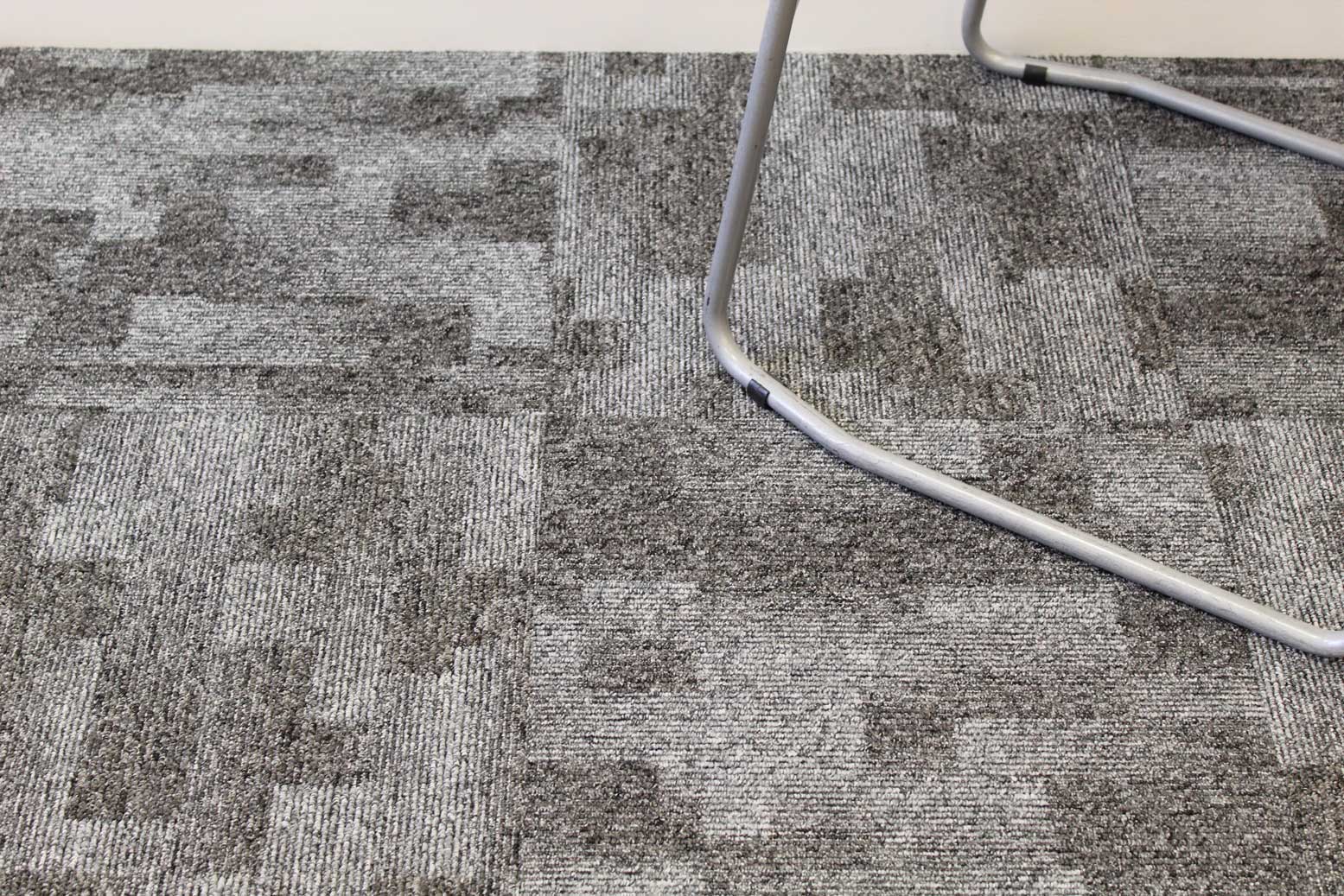

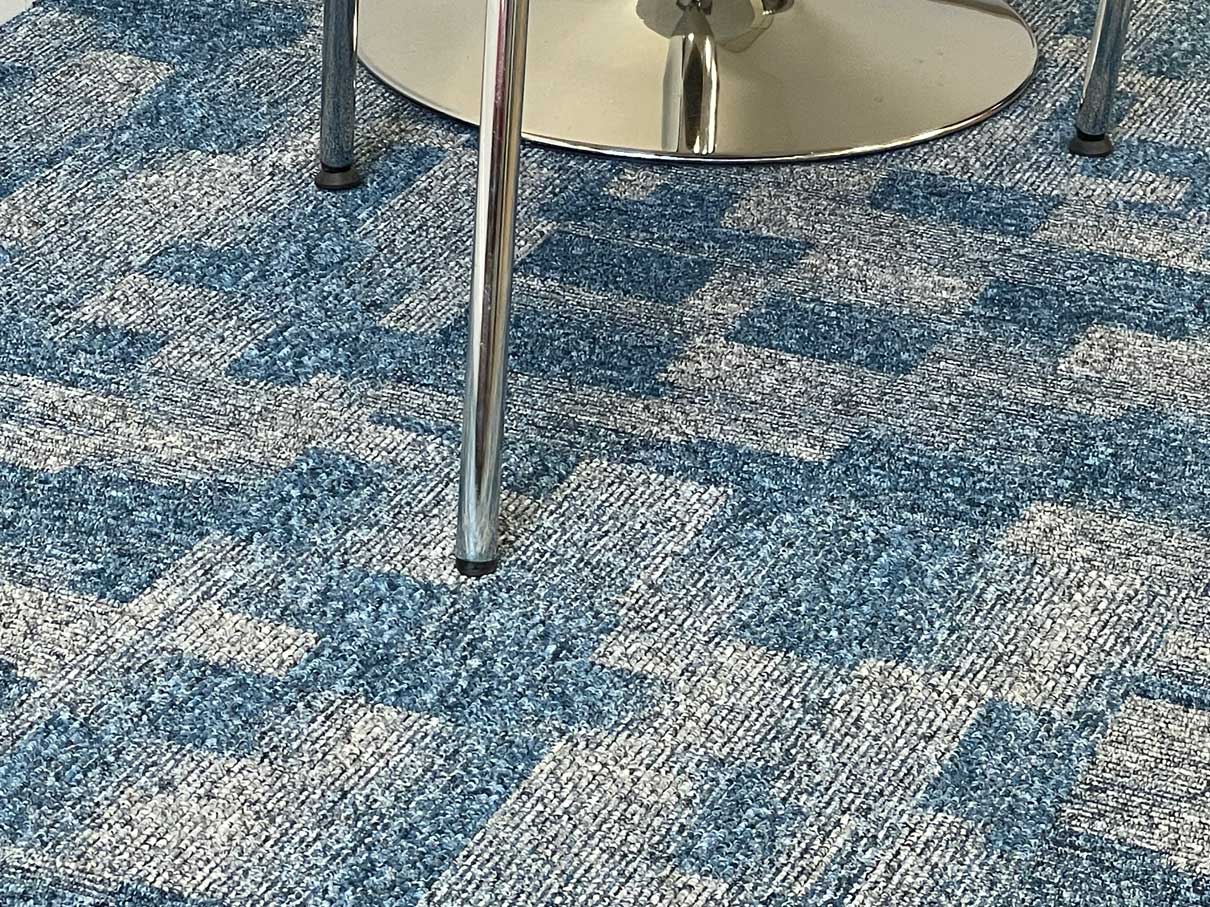

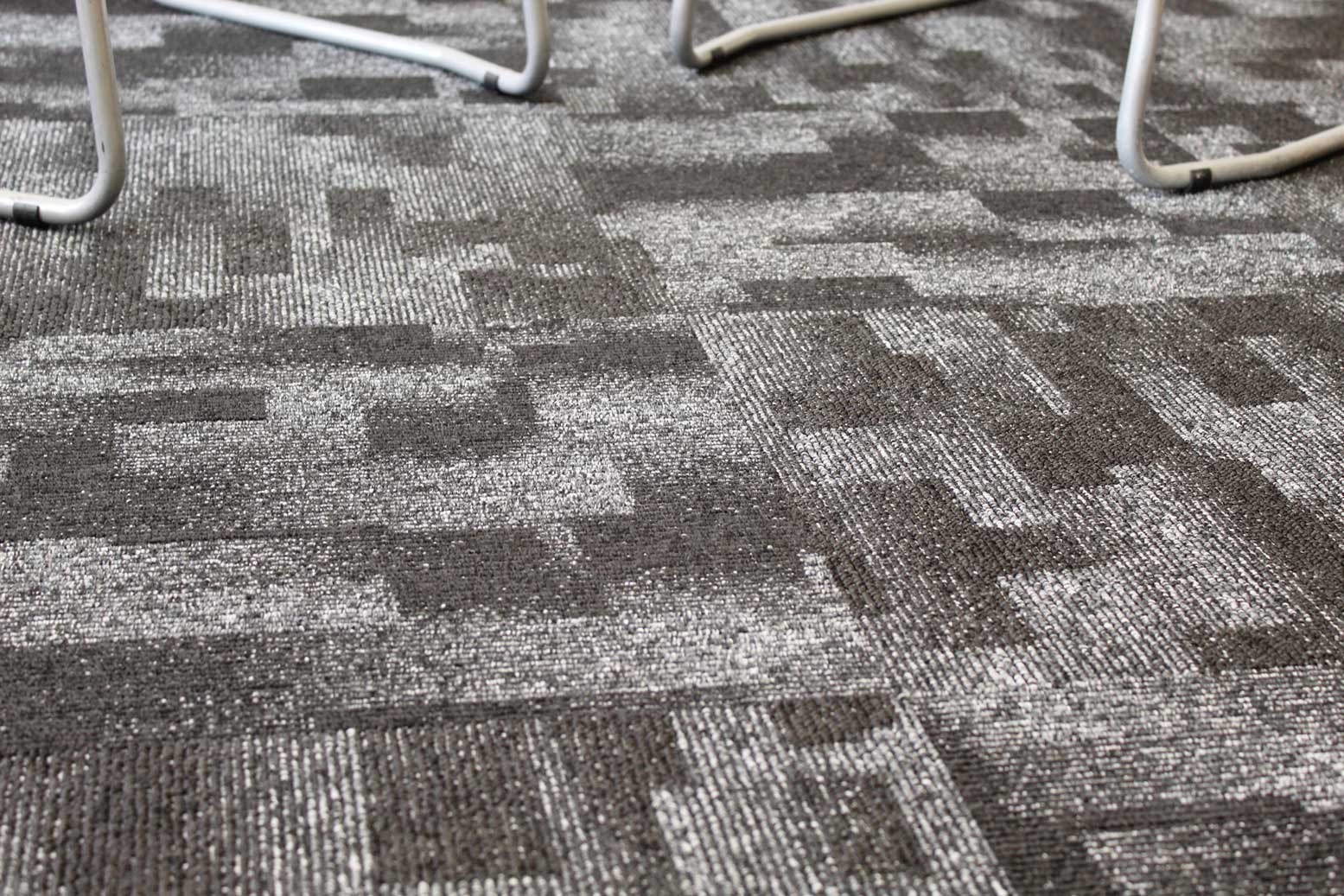

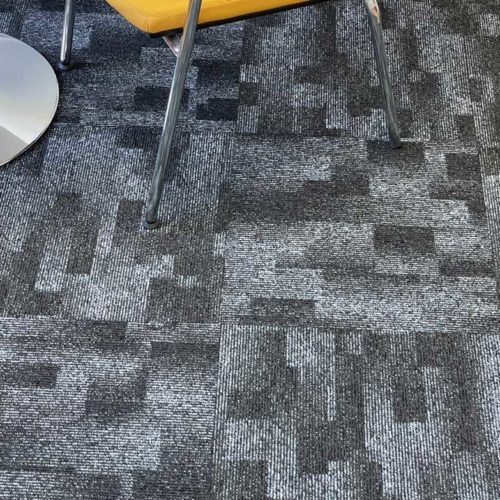

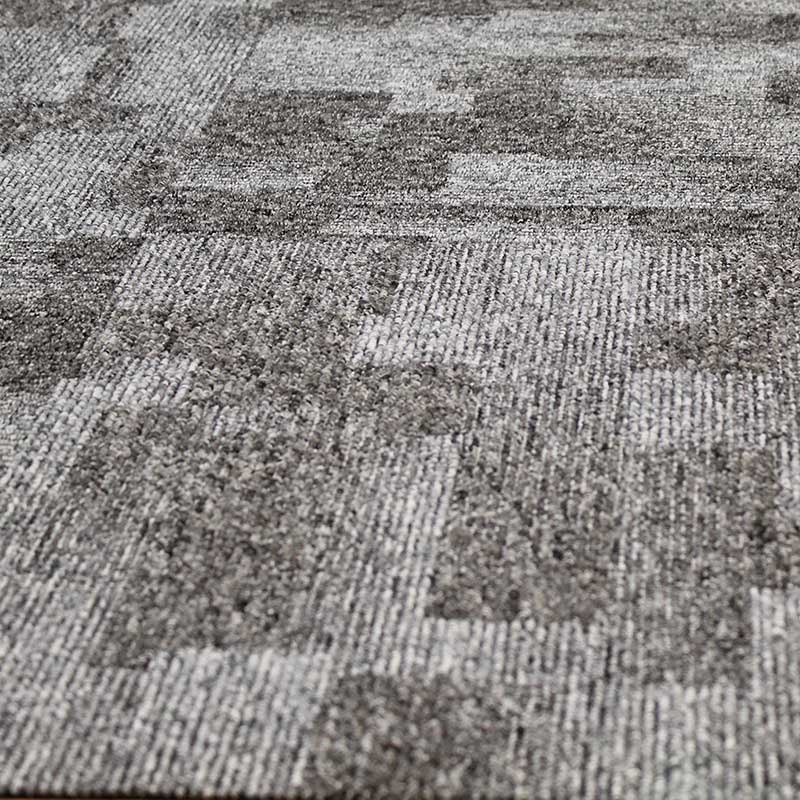

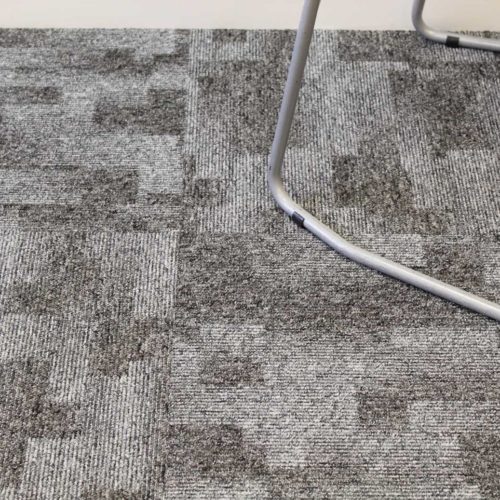

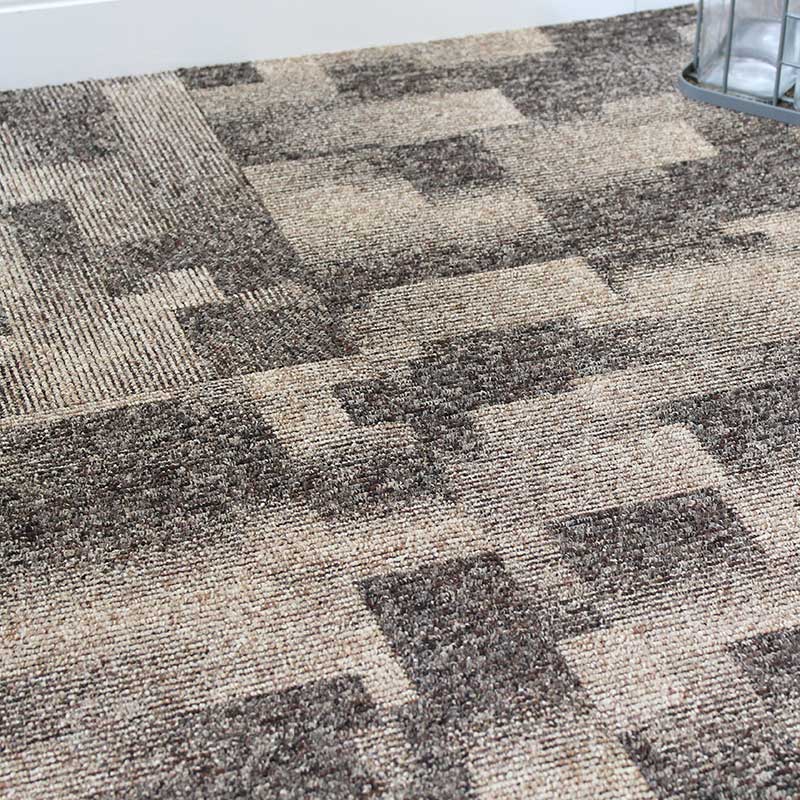

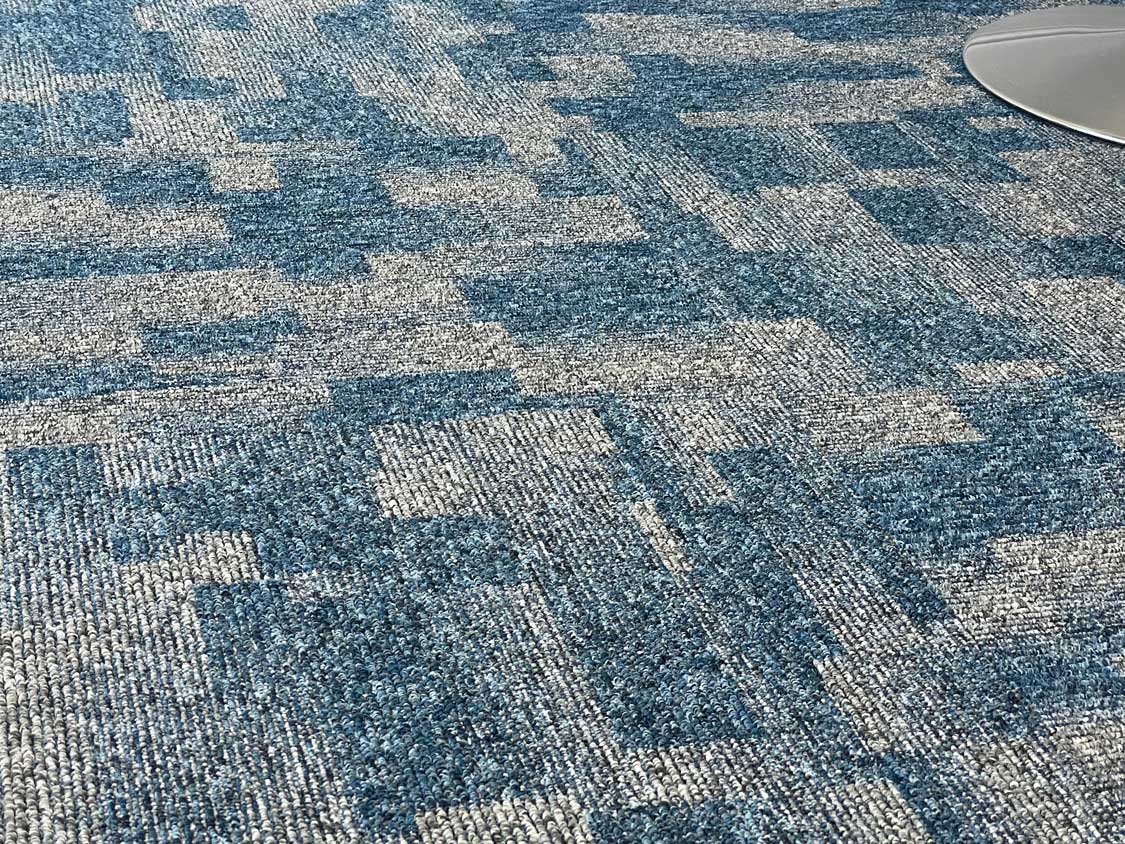

Product Gallery

More Info & Comparisons

Carpet Tile Benefits

For the majority of projects, carpet tiles are a superior choice both practically and in terms of design.

One of the main reasons architects and designers, not to mention floor fitters , choose to work with carpet tiles is the ease with which they can be installed.

  • Carpet tiles are easy to lift and transport, making it easier to get them on the job site undamaged, in the first place.
  • Because they’re pre-backed, carpet tiles  can be installed directly onto the subfloor, eliminating the need for underlays. This saves a lot of time and effort, not to mention money.
  • Carpet tiles don’t always need to acclimatise or settle in place for 24 hours before they are laid.
  • Less waste; carpet tiles generate minimal waste in the fitting stage. This is because very little cutting, or adjustment, is needed for tiles to fit a given space. This is particularly true of rooms with many nooks and odd angles.
  • You can expect a waste of around 1-3 %. Less waste means less money spent, but is also attractive for clients concerned sustainability.
View The Comparisons

Product Comparisons

We are confident you will find Urban Structure equally compatible to many of our competitors in today’s market place.

Urban Structure carpet tiles are:

  • Solution dyed polypropylene
  • Have a 5 year general contract wear warranty
  • Has a class 32 wear classification
  • Has a dB rating (24dB) greater than the BS standard (19dB)
  • Anti-static
  • European manufactured

Urban Structure’s design palette is comparable to:

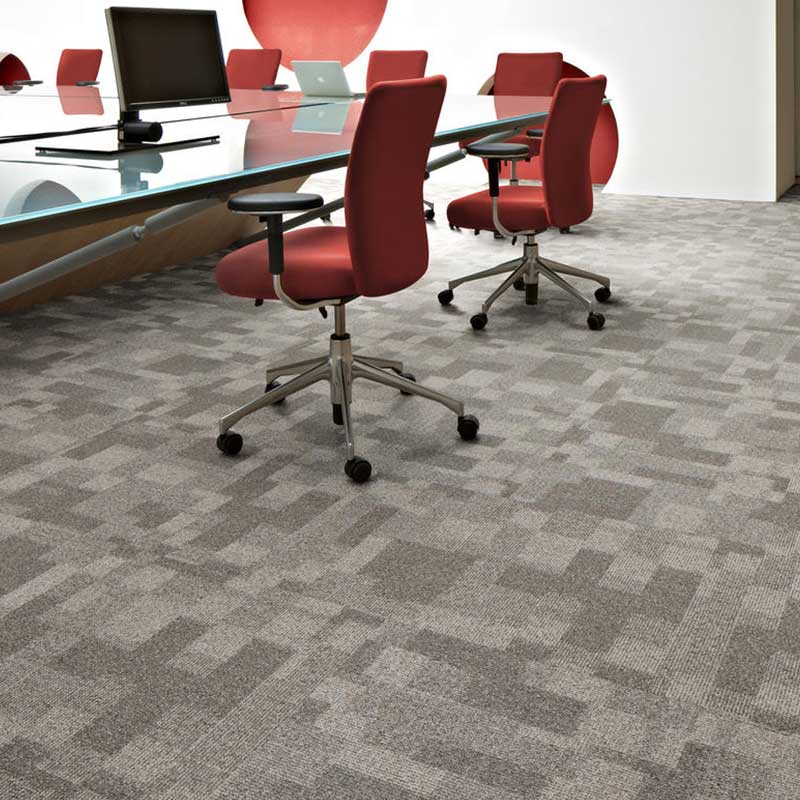

  • DESSO Essence Maze

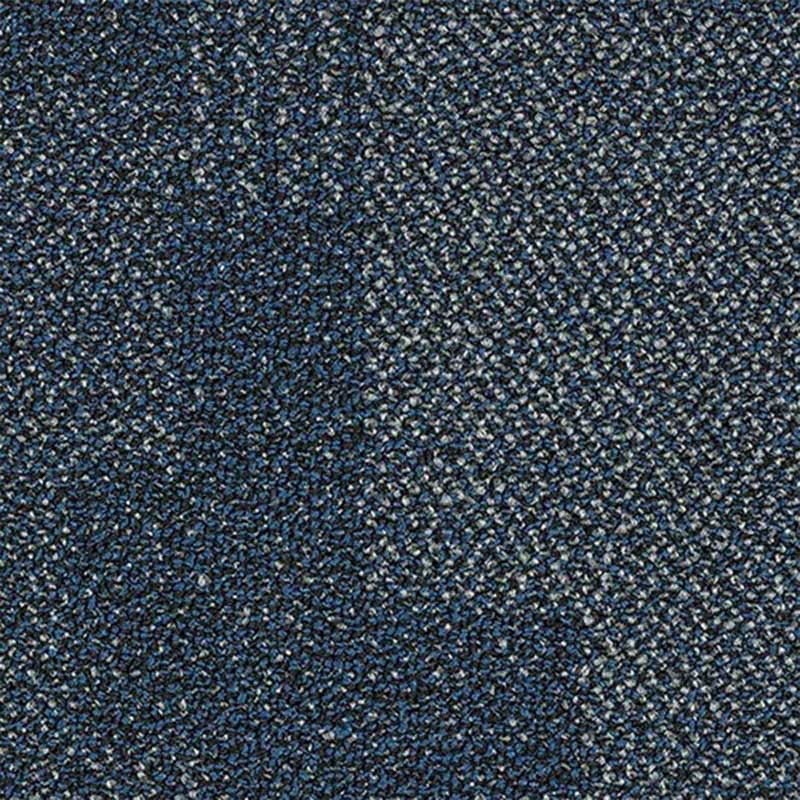

  • Abingdon Mayfair

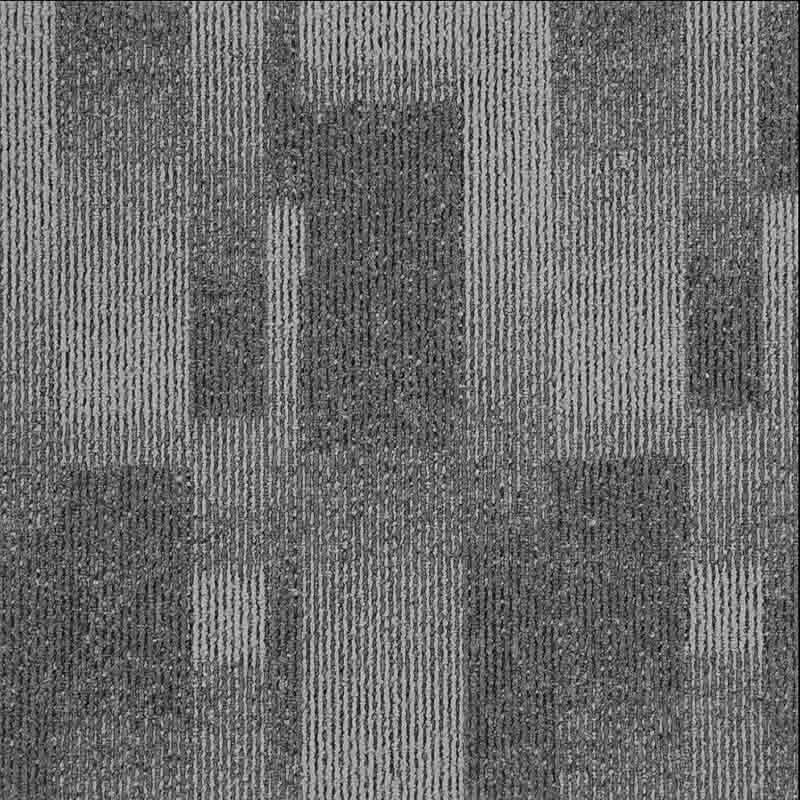

  • DCTUK Nouveau Bee Line
